3HP MARATHON 1725RPM 184T 115/208-230V DP 1PH MOTOR I113A

Catalog Number:  I113A
Model Number:  184TCDW7026
Description:  3HP,1725RPM,184T,115/208-230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  78 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start Induction Run design
  • F1 Mounting only, cannot reassemble to F2
  • 1.15 Service Factor
  • Heavy gauge steel frame and base
  • Ball bearings
  • UL Recognized and CSA Certified
  • Footnotes: 2,13,18

Phase 1 Insulation Class F
Frame 184T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design N
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code J
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 78 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

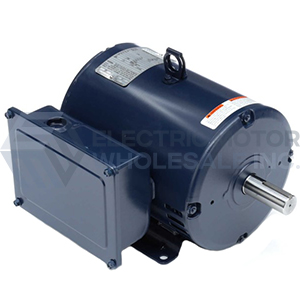

3HP MARATHON 1725RPM 184T 115/208-230V DP 1PH MOTOR I113A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: I113A
Stock # I113A
Price: $351.00
Compare At: $566.00
