2HP MARATHON 1750RPM 182T 115/208-230V DP 1PH MOTOR I112A
2HP MARATHON 1750RPM 182T 115/208-230V DP 1PH MOTOR I112A

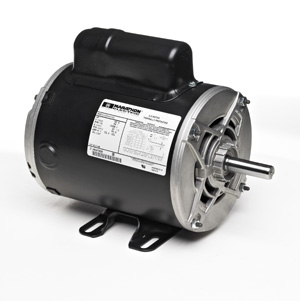

Picture is for reference only.
Part Number:
I112AManufacturer:
Marathon ObsoleteManufacturer Part Number:
182TCDW7026Click below to view suggested functional replacement.
Shipping Details
Weight:
62 lbsDimensions:
12 x 20 x 12 inchesHS Code:
8501.40.6040UPC:
722856006868Technical Details
Specifications
Application: | General Purpose |
Output HP: | 2 |
Output KW: | 1.5 |
Output RPM: | 1750 |
Frame NEMA: | 182T |
Mount NEMA: | Base Mount |
Enclosure NEMA: | DP |
Enclosure IEC: | IP22 |
Voltage: | 115/208-230 |
Frequency (Hz): | 60 |
Documentation
Additional Information
APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use. FEATURES: No overload protection Capacitor Start Induction Run design F1 Mounting only, cannot reassemble to F2 1.15 Service Factor Heavy gauge steel frame and base Ball bearings UL Recognized and CSA Certified
Click below to view suggested functional replacement.
Shipping Details
Weight:
62 lbsDimensions:
12 x 20 x 12 inchesHS Code:
8501.40.6040UPC:
722856006868
