2HP MARATHON 3450RPM 145T 115/208-230V DP 1PH MOTOR I102

Catalog Number:  I102
Model Number:  145TBDR5302
Description:  2HP,3450RPM,145T,115/208-230V,DP,1PH,60HZ
Ship Weight:  35 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • No overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • 1.15 Service Factor
  • Heavy gauge steel frame and base
  • Ball bearings
  • UL Recognized and CSA Certified
  • Footnotes: 1,18

Phase 1 Insulation Class B
Frame 145T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code H
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6205 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 35 LB lbs
UL Recognized Construction
Thermal Protection

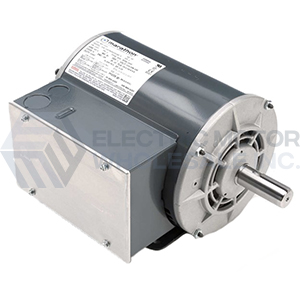

2HP MARATHON 3450RPM 145T 115/208-230V DP 1PH MOTOR I102
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: I102
Stock # I102
