1/2HP MARATHON 1725RPM 48Z 115V DP 1PH MOTOR HG710

Catalog Number:  HG710
Model Number:  5KH33JNA511T
Description:  1/2HP,1725RPM,48Z,115V,DP,1PH,60HZ
Design: SPLIT PHASE
Ship Weight:  15 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

FEATURES:

  • Automatic overload protection
  • Split Phase design
  • Ball bearing
  • 1.0 Service Factor
  • Shaft extension 2-1/4” long by 1/2” diameter
  • Heavy gauge steel frame and base
  • UL Recognized and CSA Certified
  • Footnotes: 3,9

Phase 1 Insulation Class B
Frame 48Z Duty Continuous
Enclosure DP Ambient 40
Mounting RB NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code N
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation Counterclockwise
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 15 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Automatic

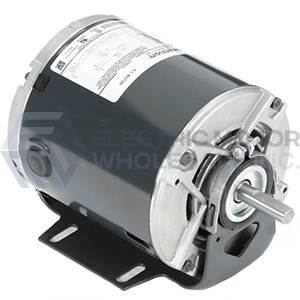

1/2HP MARATHON 1725RPM 48Z 115V DP 1PH MOTOR HG710
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: HG710
