1/3HP MARATHON 1425RPM 56Z 110/220V DP 1PH MOTOR HG692

Catalog Number:  HG692
Model Number:  5KH36LN489X
Description:  1/3HP,1425RPM,56Z,110/220V,DP,1PH,50HZ
Design: SPLIT PHASE
Ship Weight:  17 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

FEATURES:

  • Automatic overload protection
  • Split phase design
  • Designed for 50 Hz operation
  • Ball bearing
  • 1.0 Service Factor
  • Heavy gauge steel frame and base
  • UL Recognized and CSA Certified
  • Footnotes: 3,50



Phase 1 Insulation Class B
Frame 56Z Duty Continuous
Enclosure DP Ambient 40
Mounting RB NEMA Design -
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code P
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation Counterclockwise
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 17 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Automatic

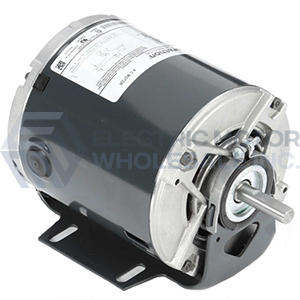

1/3HP MARATHON 1425RPM 56Z 110/220V DP 1PH MOTOR HG692
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: HG692
Stock # HG692
Price: $158.00
Compare At: $254.00
