HG681 MARATHON 1/3HP SINGLE PHASE CARBONATOR PUMP MOTOR 5KH32GNB814X

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

1/3HP MARATHON 1725RPM 48Y DP 100-120/200-240V 1PH MOTOR HG681

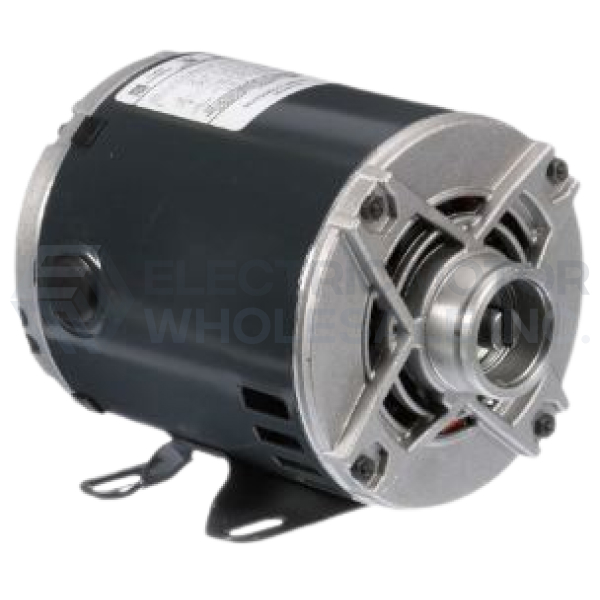

Picture is for reference only.

Part Number:

HG681

Model/Spec Number:

5KH32GNB814X

Manufacturer:

Marathon Obsolete

HG681 MARATHON 1/3HP Single Phase Carbonator Pump Motor

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

14 lbs

Dimensions:

7 x 13 x 8 inches

HS Code:

8501.40.4040

UPC:

722856031792

Technical Details

Specifications

Application:	Carbonator Pump
Output HP:	1/3
Output KW:	0.25
Output RPM:	1725//1425
Frame NEMA:	48Y
Mount NEMA:	Base Mount
Enclosure NEMA:	DP
Voltage:	100-120//200-240
Frequency (Hz):	60//50
Efficiency:	62.0

Documentation

Product Information Packet

Additional Information

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

FEATURES:

Single Shaft
Ball bearings
1.0 Service Factor
Completely interchangeable with OEM units
Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
UL Recognized and CSA Certified

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
