HG679 LEESON 1/4HP SINGLE PHASE CARBONATOR PUMP MOTOR 5KH32DN5597X

Electric Motors

Discontinued Electric Motors

Leeson Discontinued Motors

1/4HP LEESON 1725RPM 48Y DP 115V 1PH MOTOR HG679

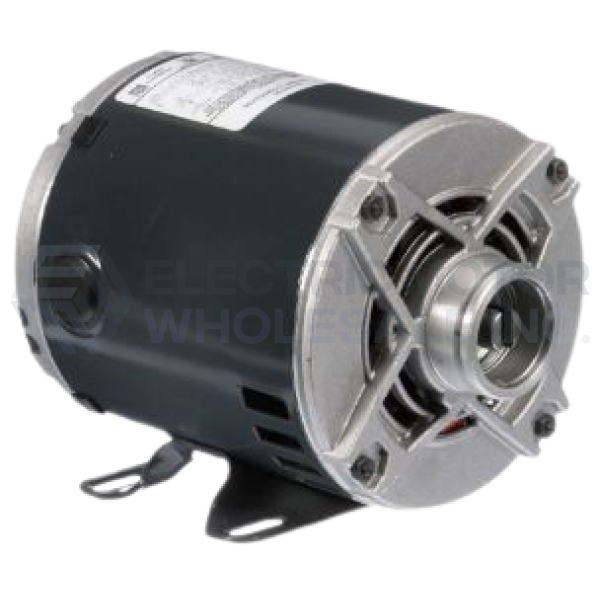

Picture is for reference only.

Part Number:

HG679

Model/Spec Number:

5KH32DN5597X

Manufacturer:

Leeson Obsolete

HG679 LEESON 1/4HP Single Phase Carbonator Pump Motor

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

11 lbs

Dimensions:

7 x 13 x 8 inches

HS Code:

8501.40.4040

UPC:

722856031778

Technical Details

Specifications

Application:	Carbonator Pump
Output HP:	1/4
Output KW:	0.19
Output RPM:	1725
Frame NEMA:	48Y
Mount NEMA:	Base Mount
Enclosure NEMA:	DP
Voltage:	115
Frequency (Hz):	60
Efficiency:	52.5

Documentation

Product Information Packet

Additional Information

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

FEATURES:

Single Shaft
Ball bearings
1.0 Service Factor
Completely interchangeable with OEM units
UL Recognized and CSA Certified

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
