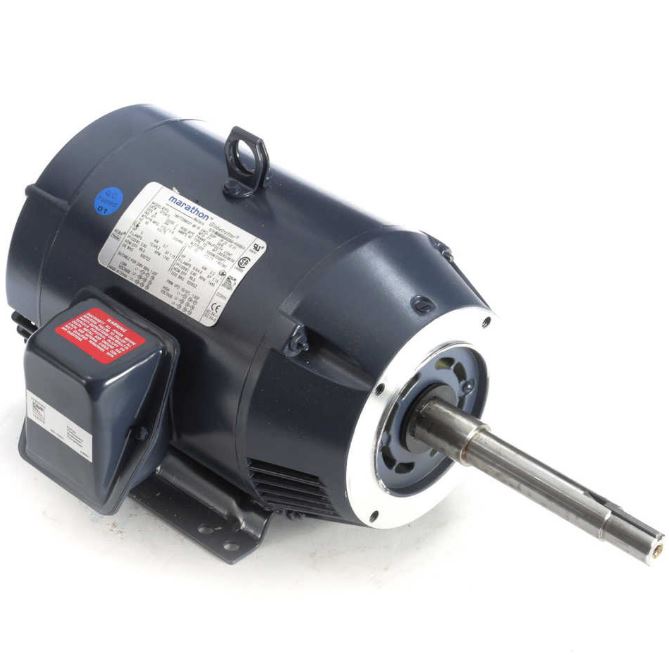

5HP MARATHON 1800RPM 184JP DP 230/460V 3PH MOTOR GT2413
|Ship Weight:||95 lbs.|
This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team
APPLICATIONS: Close-coupled pump where the pump impeller is mounted directly on the
motor shaft in environments that are relatively clean and dry.
- C-Face with rigid base
- Meets or exceeds NEMA Premium® efficiencies
- NEMA Premium® models are in compliance with EISA2007
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque, 1.0 SF
- 1.15 Service Factor
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
- Nameplated 60/50 hertz, 190/380 volts at next lower HP
- Three year warranty
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
|Mounting||C-Face Rigid||NEMA Design||B|
|Orientation||HORIZONTAL||Starting Type||LINE OR INVERTER|
|Assembly||F1 (F2 Modification Available)||KVA Code||K|
|Drive End Bearing||BALL||IP Code||22|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6307|
|Opposite End Bearing Size||6205|
|Weight||95 LB lbs||Inverter Speed Range||VARIABLE 10:1|
