1/2HP MARATHON 1800RPM 56C 115/208-230V DP 1PH MOTOR G380

Catalog Number:  G380
Model Number:  056C17F5957
Description:  1/2HP,1800RPM,56C,115/208-230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  27 lbs.

This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • C-Face Footed (Rigid Base)
  • 56H, 143T, and 145T Combination Base with 12 mounting holes
  • Capacitor Start Induction Run design
  • Manual overload protection
  • Heavy gauge steel frame and base
  • Pressure washer duty
  • Ball bearings
  • UL Recognized and CSA Certified
  • Footnote: 2, 5

Phase 1 Insulation Class B
Frame 56C Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting C-Face Rigid NEMA Design N
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 27 LB lbs
CE N/A CSA Y
UL Recognized Construction and Protector
Thermal Protection Manual Protector
1/2HP MARATHON 1800RPM 56C 115/208-230V DP 1PH MOTOR G380

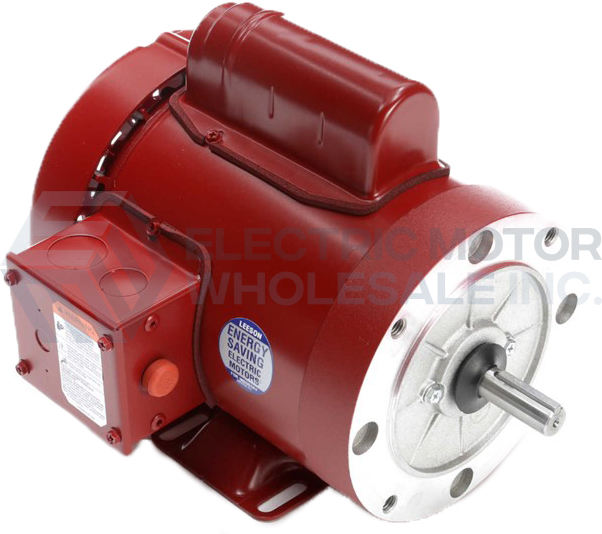

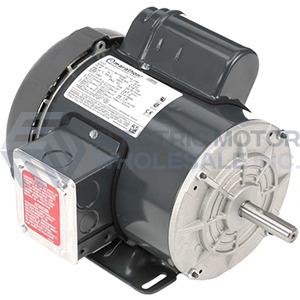

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G380
Stock # G380
Price: $261.00
Compare At: $599.00
