3/4HP MARATHON 3450RPM 56 115/208-230V TEFC 1PH MOTOR G379

Catalog Number:  G379
Model Number:  056C34F5309
Description:  3/4HP,3450RPM,56,115/208-230V,TEFC,1PH,60HZ
Ship Weight:  26 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • Manual overload protection
  • Capacitor Start Induction Run design
  • Ball bearings
  • Will accept C-Face kit
  • Heavy gauge steel construction
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 2,14,18

Phase 1 Insulation Class B
Frame 56 Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design N
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code M
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 26 LB lbs
UL Recognized Construction and Protector
Thermal Protection Manual Protector
3/4HP MARATHON 3450RPM 56 115/208-230V TEFC 1PH MOTOR G379

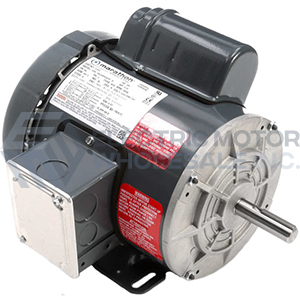

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G379
Stock # G379
Price: $172.00
Compare At: $277.00
