2HP MARATHON 1725RPM 56C 115/230V DP 1PH MOTOR G274A

Catalog Number:  G274A
Model Number:  056B17D15554
Description:  2HP,1725RPM,56C,115/230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  48 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Heavy gauge steel frame and base
  • Ball bearings mechanically locked on shaft end
  • 1.15 Service Factor
  • UL Recognized and CSA Certified

Phase 1 Insulation Class B
Frame 56 Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 OUT ODE BRKT RADIAL KVA Code J
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 48 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

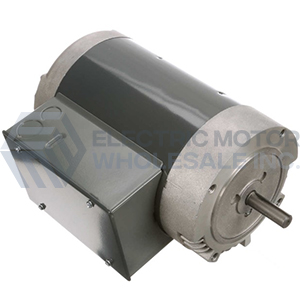

2HP MARATHON 1725RPM 56C 115/230V DP 1PH MOTOR G274A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G274A
Stock # G274A
Price: $365.00
Compare At: $599.00
