1.5HP MARATHON 1725RPM 56C DP 1PH MOTOR G270A

MARATHON G270 has been superseded by G270A

Catalog Number:  G270A
Model Number:  056B17D15541
Description:  1.5HP,1725RPM,56C,115/230V,DP,1PH,60HZ
Design: CAPACITOR START
Ship Weight:  46 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

  • No overload protection
  • Capacitor Start Induction Run design
  • Heavy gauge steel frame and base
  • Ball bearings mechanically locked on shaft end
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: 18

Phase 1 Insulation Class B
Frame 56C Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Footless NEMA Design N
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code J
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 46 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

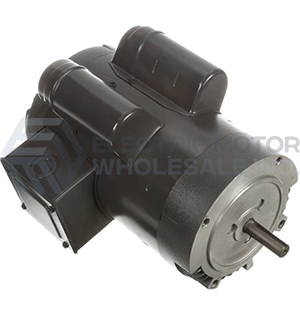

1.5HP MARATHON 1725RPM 56C DP 1PH MOTOR G270A
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G270A
Stock # G270A
Price: $345.00
Compare At: $512.00
