1/2HP MARATHON 1725RPM 56C 115/230V DP 1PH MOTOR G234A
| Catalog Number: | G234A |
| Model Number: | 056B17D11017 |
| Description: | 1/2HP,1725RPM,56C,115/230V,DP,1PH,60HZ |
| Design: | CAPACITOR START |
| Ship Weight: | 21 lbs. |
APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.
FEATURES:
- No overload protection
- Ball bearings mechanically locked on shaft end
- Heavy gauge steel frame and base
- Capacitor Start Induction Run design
- 1.25 Service Factor
- UL Recognized and CSA Certified
| Phase | 1 | Insulation Class | B |
|---|---|---|---|
| Frame | 56C | Duty | CONTINUOUS |
| Enclosure | DP | Ambient | 40 |
| Mounting | C-Face Footless | NEMA Design | N |
| Orientation | HORIZONTAL | Starting Type | CAP START CAP RUN |
| Assembly | F1 ONLY | KVA Code | K |
| Drive End Bearing | BALL | IP Code | 22 |
| Opposite End Bearing | BALL | ||
| Drive End Bearing Size | 6203 | Rotation | SELECTIVE CCW |
| Opposite End Bearing Size | 6203 | ||
| Weight | 25 LB lbs | ||
| CE | Y | CSA | Y |
| UL | Recognized Construction | ||
| Thermal Protection | |||

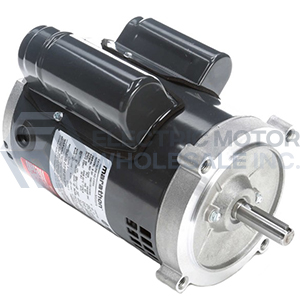

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G234A
Stock # G234A
