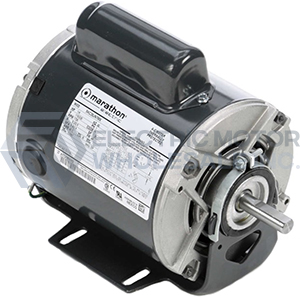

1/2HP MARATHON 1725RPM 56 115/230V DP 1PH MOTOR G151
|Ship Weight:||24 lbs.|
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.
- Automatic overload protection
- Capacitor Start design for high starting torque
- Ball bearings
- Will become build-up item when current stock is gone
- 1.25 Service Factor
- Heavy gauge steel frame and base
- UL Recognized and CSA Certified
- Footnotes: D,19
|Mounting||Resilient Base||NEMA Design||NO DESIGN CODE|
|Orientation||HORIZONTAL||Starting Type||CAP START IND RUN|
|Assembly||F1 ONLY||KVA Code||L|
|Drive End Bearing||BALL||IP Code||22|
|Opposite End Bearing||BALL|
|Drive End Bearing Size||6203||Rotation||SELECTIVE CCW|
|Opposite End Bearing Size||6203|
|Weight||24 LB lbs|
|UL||Recognized Construction and Protector|
|Thermal Protection||Automatic Protector|
