2HP MARATHON 3450RPM 56 115/230V TEFC 1PH MOTOR G1392

Catalog Number:  G1392
Model Number:  5KCR49TN2139U
Description:  2HP,3450RPM,56,115/230V,TEFC,1PH,60HZ
Ship Weight:  38 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • Manual overload protection
  • Capacitor Start/Capacitor Run design for reduced amperage
  • Ball bearings
  • Energy Saver Design
  • Heavy gauge steel construction
  • 1.15 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: ES,1,18

Phase 1 Insulation Class B
Frame 56 Duty Continuous
Enclosure TEFC Ambient 40
Mounting WB NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code G
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation Select Counter clockwise
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 38 LB lbs
Thermal Protection Manual
2HP MARATHON 3450RPM 56 115/230V TEFC 1PH MOTOR G1392

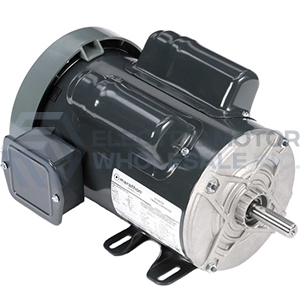

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G1392
Stock # G1392
Price: $341.00
Compare At: $784.00
