3/4HP MARATHON 1725RPM 56C 100-120/200-240V DP 1PH MOTOR E268

Catalog Number:  E268
Model Number:  5KCR49PN0095Y
Description:  3/4HP,1725RPM,56C,100-120/200-240V,DP,1PH,60/50HZ
Ship Weight:  30 lbs.

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.


  • Manual overload protection
  • Capacitor start design for high starting torque
  • Energy Saver Design
  • Ball bearings
  • Heavy gauge steel frame and base
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
  • 1.25 Service Factor
  • UL Recognized and CSA Certified
  • Footnotes: ES,1,68

Phase 1 Insulation Class B
Frame 56C Duty Continuous
Enclosure DP Ambient 40
Mounting WB NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code M
Drive End Bearing LOCKED IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation Counterclockwise
Opposite End Bearing Size 6203 Hazardous Location N/R
Weight 30 LB lbs
Thermal Protection Manual

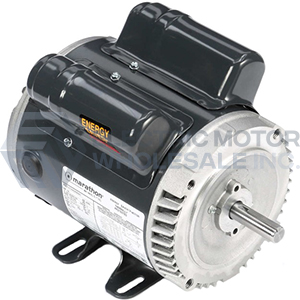

3/4HP MARATHON 1725RPM 56C 100-120/200-240V DP 1PH MOTOR E268
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: E268
Stock # E268
Price: $230.00
Compare At: $405.00
