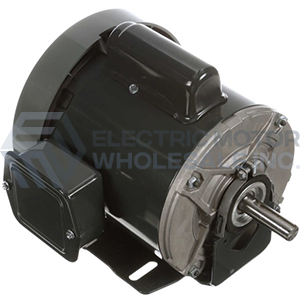

1/2HP MARATHON 1725RPM 56 115/230V TEFC 1PH MOTOR C289
| Catalog Number: | C289 |
| Model Number: | 5KC42GN0309X |
| Description: | 1/2HP,1725RPM,56,115/230V,TEFC,1PH,60HZ |
| Design: | CAPACITOR START, SINGLE-SPEED |
| Ship Weight: | 21 lbs. |
This Marathon motor is Non-Returnable.
Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.
APPLICATIONS: Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.
FEATURES:
- Automatic overload protection
- Capacitor Start Induction Run design
- Ball bearing
- 1.15 Service Factor
- Heavy gauge steel frame and base
- UL Recognized and CSA Certified
- Footnotes: 2,18
| Phase | 1 | Insulation Class | B |
|---|---|---|---|
| Frame | 56 | Duty | Continuous |
| Enclosure | TEFC | Ambient | 40 |
| Mounting | RB | NEMA Design | - |
| Orientation | Horizontal or Vertical | Starting Type | Switch and Mech |
| Assembly | N/A | KVA Code | M |
| Drive End Bearing | BALL | IP Code | N/A |
| Opposite End Bearing | BALL | ||
| Drive End Bearing Size | 6203 | Rotation | Select Counter clockwise |
| Opposite End Bearing Size | 6203 | Hazardous Location | N/R |
| Weight | 21 LB lbs | ||
| CE | N/A | CSA | Y |
| UL | Y | ||
| Thermal Protection | Automatic | ||
