1/4HP MARATHON 1725RPM 48YZ 115V DP 1PH MOTOR B206

Catalog Number:  B206
Model Number:  048S17D2107
Description:  1/4HP,1725RPM,48YZ,115V,DP,1PH,60HZ
Design: Single-Speed
Ship Weight:  14 lbs.

This Marathon motor is Non-Returnable.

Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our customer service department to answer any questions you may have.

APPLICATIONS: Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.

FEATURES:

  • Automatic overload protection
  • Single-speed
  • Split Phase Design
  • Ball bearing
  • 1.35 Service Factor
  • 5/8” shaft adapter included
  • Optional removable 0.625" sleeve adapter included
  • 48YZ frame has 48/56 frame mounting holes
  • Heavy gauge steel frame and base
  • UL Recognized and CSA Certified
  • Footnotes: 26,20

Phase 1 Insulation Class B
Frame 48YZ Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Resilient Base NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type SPLIT PHASE
Assembly F1 ONLY KVA Code p
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 14 LB lbs
CE Y CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector

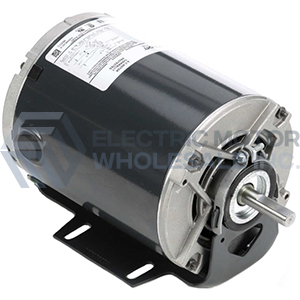

1/4HP MARATHON 1725RPM 48YZ 115V DP 1PH MOTOR B206
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: B206
Stock # B206
Price: $84.00
Compare At: $134.00
