3/4HP LINCOLN 1170RPM 182U TENV 3PH MOTOR LM21379

Catalog Number:  LM21379
Description:  3/4HP,1170RPM,182U,TENV,3PH,60HZ
Ship Weight:  108 lbs.



Subject to availability, call for lead times.

LINCOLN Three Phase TE U-FRAME Automotive Duty MotorsFor use on a wide variety of tough applications found in automotive manufacturing facilities and other industries utilizing U-Frame motors

Speed ranges (continuous duty) on variable-frequency electronic
speed controls (inverters):

P efficiency codes: Constant torque, 6 to 60 Hz
Variable torque, 3 to 60 Hz

G efficiency codes: Constant torque, 15 to 60 Hz
Variable torque, 6 to 60 Hz

Features Include:

  • Made In U.S.A.
  • Meets NEMA U-Frame dimensional and performance standards.
  • Exceeds General Motors GM-7EH and -7EQ, FordEM1, and Chrysler NPEM-100 specifications. Exceed NEMA MG-1, Section IV, Part 31 spike resistance requirements.
  • NEMA Design B Performance.
  • Nameplated 1.15 service factor, 40°C ambient and 1.00 service factor, 65°C ambient.
  • Inverter-Rated
  • Premium Class F Insulation System.
  • Lower noise designs improve plant sound quality.
  • UL Recognized Component Listing and CSA Approval.
  • Warranty – (sine-wave power) 42 months from date of manufacture
    and 36 months from date of installation which ever period expires first.
    (inverter power) 30 months from date of manufacture and 24 months from date of installation which ever period expires first.

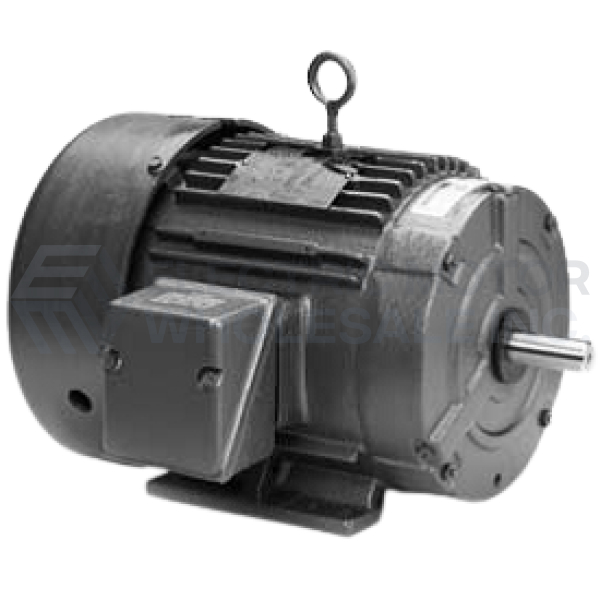

3/4HP LINCOLN 1170RPM 182U TENV 3PH MOTOR LM21379
Click Image to Enlarge
Manufacturer Part Number: LM21379
Stock # LM21379
