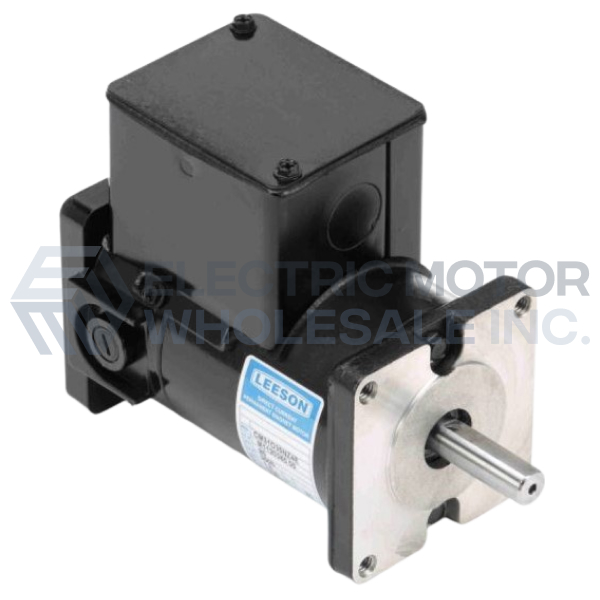

M1120059.00 LEESON 1/8HP 90VDC PERMANENT MAGNET MOTOR CM31D35NZ3

Electric Motors

Direct Current Electric Motors

LEESON Direct Current Motors

LEESON DC SUB-FHP Motors

1/8HP LEESON 3500RPM 31 TENV 90VDC PERMANENT MAGNET MOTOR M1120059.00

Part Number:

M1120059.00

Model/Spec Number:

CM31D35NZ3

Manufacturer:

Regal Rexnord Commercial

M1120059.00 LEESON 1/8HP 90VDC SUB-FHP DC MOTOR is a precision sub-fractional horsepower DC permanent magnet motors designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

MSRP: $711.00

Regular Price

USD

284

QTY

Shipping Details

Weight:

12 lbs

Dimensions:

10 x 19 x 9 inches

HS Code:

8501.31.4000

UPC:

691720090862

Technical Details

Specifications

Application:	General Purpose
Output HP:	1/8
Output KW:	0.10
Output RPM:	3500
Frame NEMA:	31
Mount NEMA:	Square Flange
Input Voltage DC:	90
Full Load Amps:	1.5
Winding:	Permanent Magnet
Enclosure NEMA:	TENV

Documentation

Product Information Packet

Additional Information

Leeson Precision sub-fractional horsepower DC permanent magnet motors is designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range.

Mechanical Features: Compact space saving designs. Ball bearings. Long life brushes for demanding applications. Brushes easily replaced without disassembly of the motor. Standard mounted conduit box on 31 and 34 frame models simplifies connections.

Electrical Features: Continuous duty with full wave unfiltered rectified SCR (thyristor) controls. Linear speed torque characteristics throughout the speed range. High starting torques. Reversible rotation from a simple two lead connection.
