5HP LEESON 3450RPM 184TC TEFC 3PH MOTOR G151446

5HP LEESON 3450RPM 184TC TEFC 3PH MOTOR G151446

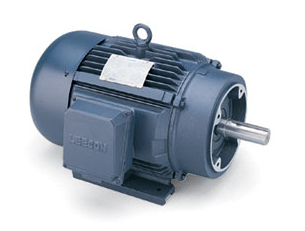

Picture is for reference only.

Part Number:

G151446

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

G151446.60
G151446.60 LEESON 5HP Three Phase Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Dimensions:

16 x 26 x 16 inches

Technical Details

Application:

General Purpose, Compressor Duty, HVAC

Output HP:

5

Output RPM:

1900-4000 (2P)

Frame Size NEMA:

182-4TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Voltage:

208, 208-230, 230, 208-230/460, 230/460, 460

Frequency (Hz):

60

Efficiency:

IE2: High Eff.

Thermal Protection:

None

Motor Drawing

Connection Diagram

LEESON G151446.60 has been Superseded by 171446.60

Catalog Number:  G151446.60
Description:  5HP,3450RPM,184TC,TEFC,3PH,60HZ
Ship Weight:  116 lbs.
