5HP LEESON 1140RPM 215TC TEFC 3PH MOTOR G140482

LEESON G140482.00 has been Superseded by 171116.60

Catalog Number:  G140482.00
Description:  5HP,1140RPM,215TC,TEFC,3PH,60/50HZ
Ship Weight:  142 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 19.8-19.6 F.L. Amps 9.8 F.L. Amps 16.8/8.4
S. F Amps 21-20.8 S. F Amps 10.4 S. F Amps 17.6/8.8
RPM 1200 Hertz 60/50
HP 5 Duty CONTINUOUS TYPE TF
KW 3.70 Model Number C215T11FK3C
Frame 215TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 55
UL Yes CSA Yes Bearing OPE 6206
CC Number 005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 142 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID C Rotation REV

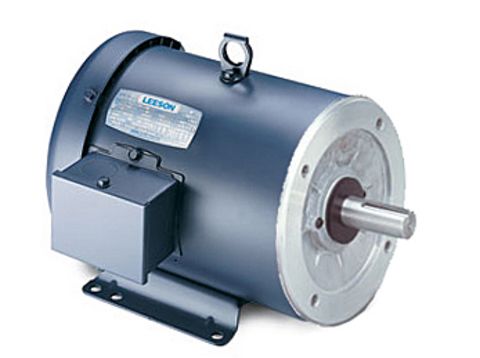

5HP LEESON 1140RPM 215TC TEFC 3PH MOTOR G140482
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G140482.00
Stock # G140482
