1HP LEESON 1160RPM 145TC TEFC 3PH MOTOR G120428.00

1HP LEESON 1160RPM 145TC TEFC 3PH MOTOR G120428.00

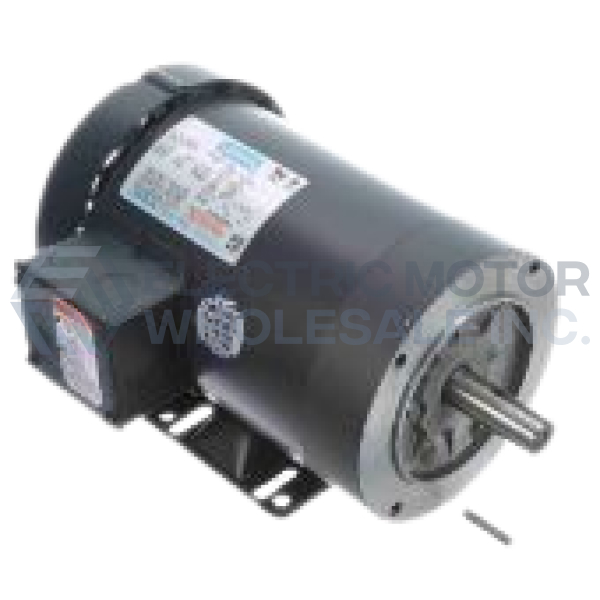

Picture is for reference only.

Part Number:

G120428.00

Manufacturer:

Leeson Obsolete
G120428.00 LEESON 1HP Three Phase Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

40 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

1

Output KW:

0.75

Output RPM:

1160

Frame Size NEMA:

145TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

208-230/460

Motor Drawing

Connection Diagram
