1HP LEESON 3600RPM 56C DP 1PH ECOSAVER MOTOR E116769.00

Catalog Number:  E116769.00 - FREE Ground Shipping in USA
Model Number:  C6K34DK23
Description:  1HP,3600RPM,56C,DP,1PH,60HZ,ECOSAVER
Ship Weight:  29 lbs.

LEESON Single Phase ECOSAVER Motors satisfies the mandated efficiencies of NEMA Premium and carries a three year warranty. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • High-quality ball bearings
  • Capacitor Start and Run
  • UL Recognized Component Listing and CSA approval
Volts 115   Volts 230   Volts
FL Amps 7.8   FL Amps 3.9   FL Amps
SF Amps 9.8   SF Amps 4.9   SF Amps
RPM 3600   Hertz 60
HP 1   Duty CONTINUOUS   Type KD
KW .75   SF 1.25   Phase 1
Frame 56C   Design L   KVA Code J
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class F   Eff(75%)     PF 99
Eff(100%) 80.4   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 29 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 10000417-001-001   Mounting RIGID   Rotation SELECTIVE CCW
Shaft Diam. 5/8 IN   Cust Part No.     Packaging B
      Winding K632184   Carton Label Individual Leeson ECOSaver
      Group 3   Iris
Paint GREEN - LEESON WATTSAVER   Hazardous Location NONE   Test Card 01

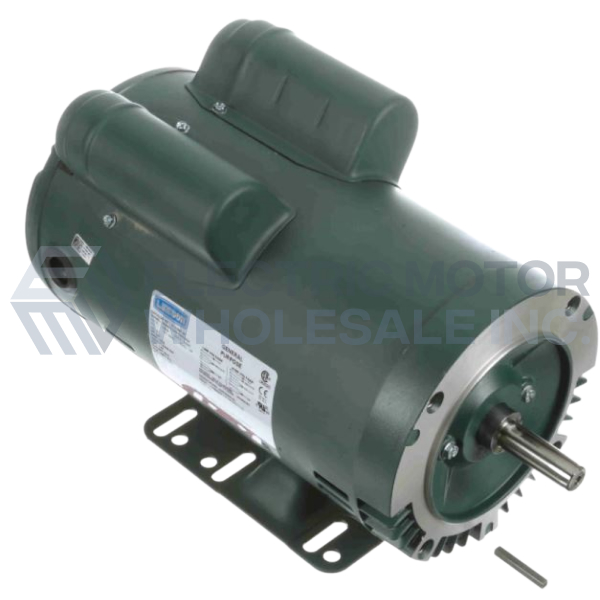

1HP LEESON 3600RPM 56C DP 1PH ECOSAVER MOTOR E116769.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: E116769.00
Stock # E116769
