1HP LEESON 1725RPM 56 DP 1PH ECOSAVER MOTOR E110000.00

Catalog Number:  E110000.00 - FREE Ground Shipping in USA
Model Number:  A6K17DB56
Description:  1HP,1725RPM,56,DP,1PH,60HZ,ECOSAVER
Ship Weight:  31 lbs.

LEESON Single Phase ECOSAVER Motors satisfies the mandated efficiencies of NEMA Premium and carries a three year warranty. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

Features:

  • Made in USA
  • 5/8" shaft output diameter
  • Durable rolled steel frame
  • Automatic Overload Protection
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
Volts 115   Volts 230   Volts
FL Amps 8.4   FL Amps 4.2   FL Amps
SF Amps 10.4   SF Amps 5.2   SF Amps
RPM 1800   Hertz 60
HP 1   Duty CONTINUOUS   Type KD
KW .75   SF 1.15   Phase 1
Frame 56   Design L   KVA Code J
Ambient 40   Protection AUTOMATIC   Therm.Prot. CEJ53CV
Insulation Class B   Eff(75%)     PF 93
Eff(100%) 82.6   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 31 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 10008461-001-001   Mounting RIGID   Rotation SELECTIVE CCW
Shaft Diam. 5/8 IN   Cust Part No.     Packaging B
      Winding K634338   Carton Label Individual Leeson ECOSaver
      Group 3   Iris
Paint GREEN - LEESON WATTSAVER   Hazardous Location NONE   Test Card 01

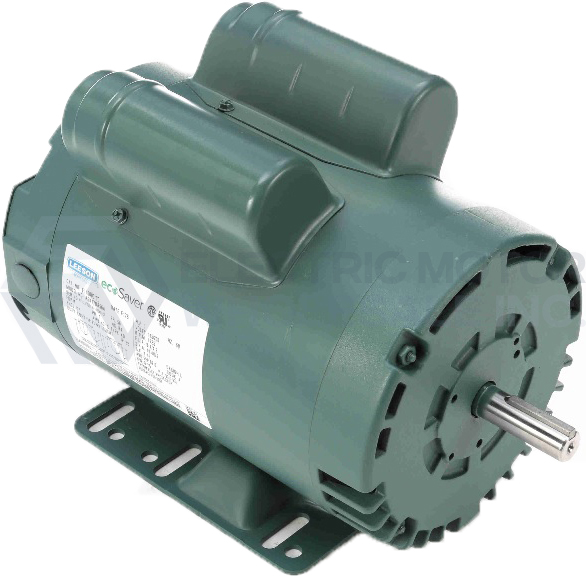

1HP LEESON 1725RPM 56 DP 1PH ECOSAVER MOTOR E110000.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: E110000.00
Stock # E110000
Price: $337.00
Compare At: $851.00
