1/3HP LEESON 3450RPM 48 ODP 1PH ECOSAVER MOTOR E101431.00

1/3HP LEESON 3450RPM 48 ODP 1PH ECOSAVER MOTOR E101431.00

ECOSAVER 1PH CSCR.jpg
Picture is for reference only.

Part Number:

E101431.00

Model/Spec Number:

A4K34DR1A

Manufacturer:

Leeson Obsolete
E101431.00 LEESON 1/3HP Single Phase Resilient Base Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.

Item Discontinued

Click below to request an agent review potential options.

Weight:

22 lbs

Dimensions:

10 x 16 x 10 inches

HS Code:

8501.40.4040

UPC:

691720990445

Technical Details

Application:

HVAC

Output HP:

1/3

Output KW:

0.25

Output RPM:

3450

Frame NEMA:

48

Mount NEMA:

Resilient Base

Enclosure NEMA:

ODP

Enclosure IEC:

IP22

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet

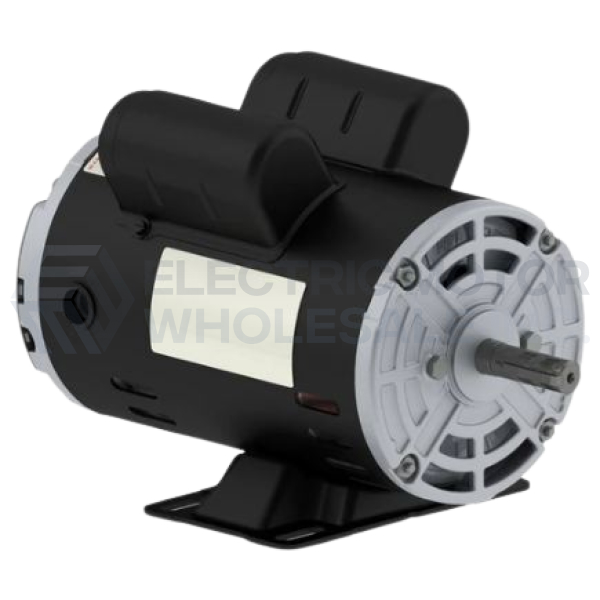

Image for 1/3HP WEG 3510RPM 48 ODP 1PH MOTOR .3336OT1B48-S
