1/4HP LEESON 1075RPM 48YZ TEAO 1PH MOTOR A099260.00

Catalog Number:  A099260.00 - FREE Ground Shipping in USA
Model Number:  A4P11NB52A
Description:  1/4HP,1075RPM,48YZ,TEAO,1PH,60HZ
Ship Weight:  21 lbs.

LEESON Single Phase PSC Variable Torque Fan Motor is designed for dependable performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than other types of single phase motors. This design is also more energy efficient and less expensive to operate.

FEATURES:

  • Rolled steel frame with corrosion resistant paint
  • Rigid base
  • 2-1/2" long by 1/2" diameter output shaft with flat and slinger
  • 1" Extended thru-bolts
  • Automatic overload protection
  • Must be mounted within the air stream of the driven fan
  • Because of the low starting torques of this design, these motors are not suitable for belt driven fan applications
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 3.05 F.L. Amps 1.5 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1075 Hertz 60
HP 1/4 Duty AIROVER TYPE PN
KW 0.19 Model # A4P11NB52A
Frame 48 Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code D
Insul Class B Protection AUT LCK RTR ONLY Therm.Prot. A-A56227-52
Eff 100% 63 Eff 75%   PF 88.6
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 18 LB Enclosure TENV Lubrication STANDARD
Nameplate 92005-6 Mounting RIGID Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-005109-15
Cust Part No   Outline A-SS404022-550 Ext. Diag2
Packaging F     Winding PE4861760

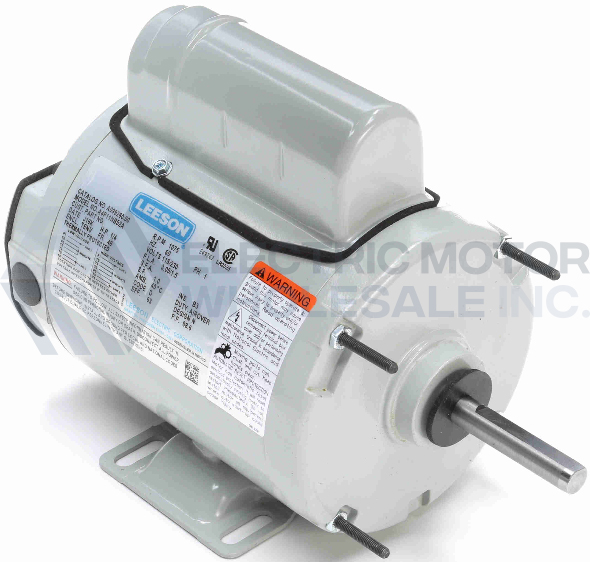

1/4HP LEESON 1075RPM 48YZ TEAO 1PH MOTOR A099260.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: A099260.00
Stock # A099260
Price: $168.00
Compare At: $438.00
