1/4HP LEESON 1725RPM 48 DP 1PH MOTOR A090602.00

Catalog Number:  A090602.00 - FREE Ground Shipping in USA
Model Number:  A4K17DR14A
Description:  1/4HP,1725RPM,48,DP,1PH,60HZ,PREMIUM
Ship Weight:  18 lbs.

LEESON Premium Efficiency Belted Fan Motor is designed for use residential or industrial belted fan applications and consumes approximately half the power of a standard fan motor.

FEATURES:

  • Drop-in replacement for most standard belted-fan motors
  • Durable rolled steel frame
  • 1/2" Keyed output shaft
  • Split phase start/Capacitor run
  • Automatic overload protection
  • 1.35 Service Factor
  • Resilient cradle base
  • Specially balanced rotors for quiet operation
  • Extremely quiet running compared to standard fan motors
  • Spade connectors on terminal board
  • Non USA Manufactured, MX
Volts 115 Volts   Volts
F.L. Amps 2.35 F.L. Amps   F.L. Amps
S. F Amps 3.1 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1/4 Duty CONTINUOUS TYPE KD
KW 0.19 Model # A4K17DR14A
Frame 48 Serv. Factor 1.35 Phase 1
Max Amb 40 Design N Code M
Insul Class B Protection AUTOMATIC Therm.Prot. CEJ67CV
Eff 100% 71.1 Eff 75%   PF 96.9
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure DP Lubrication STANDARD
Nameplate 92005-175 Mounting RESILIENT BASE Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-005326-02
Cust Part No   Outline A-SS404049-600 Ext. Diag2

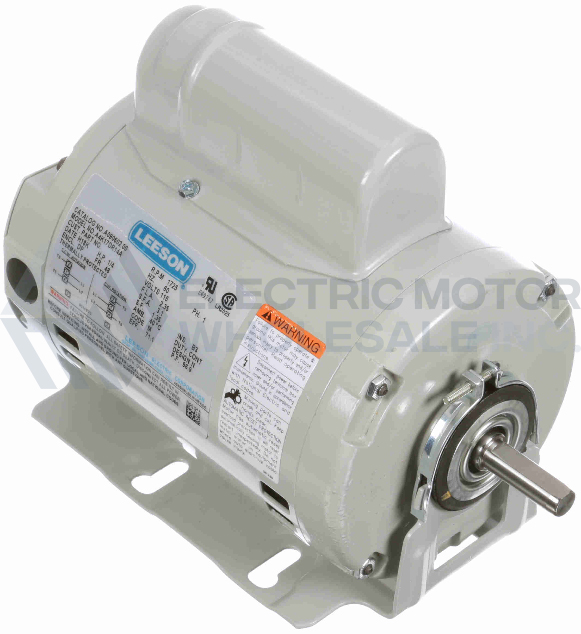

1/4HP LEESON 1725RPM 48 DP 1PH MOTOR A090602.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: A090602.00
Stock # A090602
Price: $151.00
Compare At: $381.00
