1/2HP LEESON 1800RPM 56 TEAO 1PH MOTOR A009580.00

LEESON M009580.00 has been Superseded by LEESON A009580.00

Catalog Number: A009580.00
Model Number: A6K17NB30
Description:  1/2HP,1800RPM,56,TEAO,1PH,60HZ
Ship Weight: 33 lbs.

APPLICATIONS: Designed for use in agricultural belted fan applications.


  • Steel frame
  • Rigid base
  • Totally enclosed air over
  • 5/8" shaft output diameter
  • Capacitor start / Capacitor run designs for high efficiency
  • Mount in airstream for proper cooling
  • Combination 56 / 140 frame stamped steel base
  • Automatic lock rotor only
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 4.6 F.L. Amps 2.3 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW 0.37 Model # A6K17NB30
Frame 56Z Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code J
Insul Class B Protection AUT LCK RTR ONLY Therm.Prot. MEJ28AX
Eff 100% 81 Eff 75%   PF 88.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure TEAO Lubrication STANDARD
Nameplate 92005-6 Mounting RIGID Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-102006-85LE

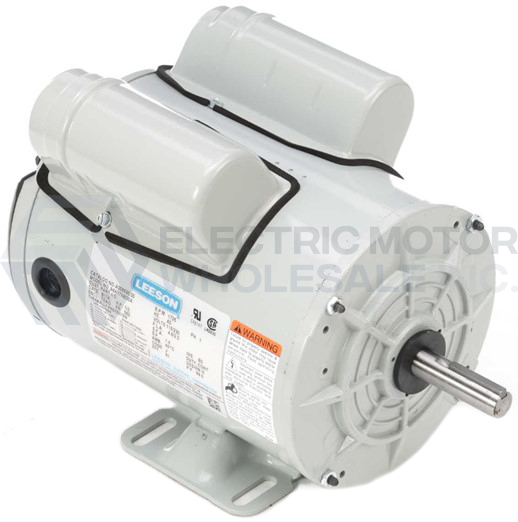

1/2HP LEESON 1800RPM 56 TEAO 1PH MOTOR A009580.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: A009580.00
Stock # A009580
Price: $268.00
Compare At: $603.00
