1/4HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191872.00

LEESON 191872.00 has been Superseded by 103711.00

Catalog Number:  191872.00
Model Number:  A4P17NZ63
Description:  1/4HP,1625RPM,48Y,TEAO,1PH,60HZ,PEDESTAL FAN
Ship Weight:  14 lbs.
Volts 115   Volts 230   Volts
FL Amps 2.6   FL Amps 1.3   FL Amps
SF Amps     SF Amps     SF Amps
RPM 1625   Hertz 60
HP 1/4   Duty AIROVER   Type PN
KW .187   SF 1.0   Phase 1
Frame 48Y   Design N   KVA Code B
Ambient 40   Protection AUTOMATIC   Therm.Prot.
Insulation Class B   Eff(75%)     PF 88.2
Eff(100%) 64   CSA Y   Bearing OPE
UL Y   CE N   Bearing PE
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 15 LB   Enclosure TENV   Lubrication POLYREX EM
Nameplate     Mounting SPECIAL   Rotation SELECTIVE CCW
Shaft Diam. 1/2 IN   Cust Part No.     Packaging
      Winding QP5543   Carton Label
      Group 3   Iris
Paint NAN   Hazardous Location NONE   Test Card

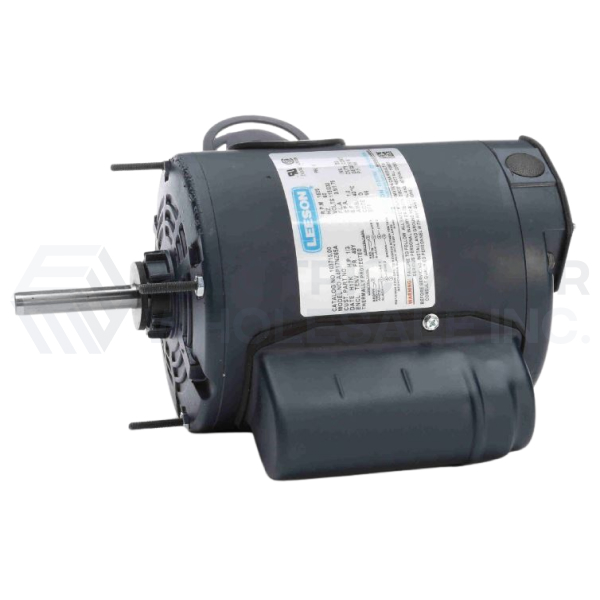

1/4HP LEESON 1625RPM 48Y TEAO 1PH MOTOR 191872.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 191872.00
Stock # 191872
