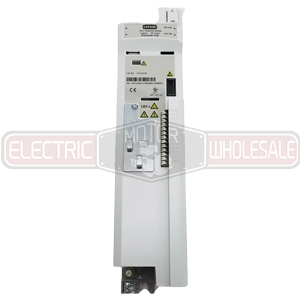

3HP LEESON PLATINUM E SERIES VSD 230/240VAC 1&3PH INPUT 176118.00

This Leeson product is Non-Returnable. Please take the time to identify your motor needs. It is the customer’s responsibility to review all product information provided to determine the correct mechanical and electrical characteristics needed for your application. If you need further assistance with this product to identify your product specifications, please contact our sales team to answer any questions you may have.

LEESON Platinum E Series VSD features a new state of the art inverter design that will help optimize your mechanical systems to achieve maximum output and reduce electrical energy consumption, all to minimize cost of operation. Recommended in applications for pumps and fans, conveyors, formers, winders, and machine tools.

Features:

• Enclosure: IP20, NEMA 1, OPEN
• Max. Ambient: 40ºC
• Fieldbus: CANopen/Modbus
• Three Set Up Methods: Innovative interface options enable set-up times faster than ever before.
  • Keypad - If you only need to set up a few parameters, such as acceleration time, this can be done quickly from the keypad.
  • Smart Keypad for use with an Android App - Enables adjustment to a simple applications such as a conveyor
  • Easy Starter/USB Module - For use if the function is needing a potentiometer or control, for positioning application needs to be set. Parameterization with USB module does not require external power supply.
• Does NOT include keypad or other interface modules
• Wide-ranging modular system enables various product configurations depending on machine requirements
• Memory module included (with OEM and user memory) for easy, out of the box commissioning
• Modes of operation: The inverter supports different modes for closed-loop/open-loop motor control
  • Sensorless Vector Control - This control type is used for sensorless vector control of an asynchronous motor
  • Sensorless PMAC - This control type is used for sensorless control of a Permanent Magnet AC motor
  • V/f Characteristic Control - This control mode is used for the speed control of an asychronous motor via a V/f characteristic and is the simplest control mode
• Protective measures against:
  • Short circuit
  • Earth fault
  • Overvoltage
  • Motor stalling
  • Motor overtemperature
• Standards:
  • RoHS2 Compliance (2011/65/EU)
  • Fulfills IE2 according to new EN 50598-2
  • UL Listed (UL 61800-5-1)
  • CSA Certified for the United States and Canada (CSA 22.2 No. 274)
  • CE Certified (2014/35/EU and 2014/30/EU)
  • EAC Certified (TR TC 004/2011 and TP TC 020/2011)
• VFC Eco mode for more energy savings
• Spring loaded control terminals (fixed)
• More functionalities for advanced application
