5HP LEESON 1180RPM 215TC TEFC 3PH WATTSAVER MOTOR 171818.60

5HP LEESON 1180RPM 215TC TEFC 3PH WATTSAVER MOTOR 171818.60

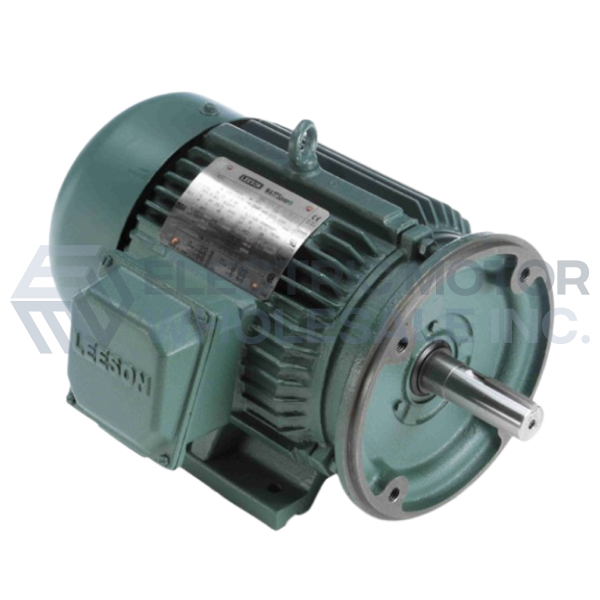

Picture is for reference only.

Part Number:

171818.60

Model/Spec Number:

215T11WK1

Manufacturer:

Leeson Obsolete
171818.60 LEESON 5HP WATTSAVER Motor is designed specifically to meet severe duty environments that you may find in applications such as chemical plants, foundries, pulp and paper mills, waste management facilities and above ground mines.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

206 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

UPC:

691720045732

Technical Details

Brand:

Leeson

Application:

Severe Duty

Output HP:

5

Output KW:

3.7

Output RPM:

1180

Frame Size NEMA:

215TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet
