7.5HP LEESON 1765RPM 213T TEFC 3PH MOTOR 140819.00

LEESON G140819.00 has been Superseded by 140819.00

Catalog Number:  140819.00
Model Number: C213T17WB6
Description:  7.5HP,1765RPM,213T,TEFC,3PH,60HZ,EPOXY WASHGUARD
Ship Weight: 161 lbs.

This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON WASHGUARD WHITE EPOXY Three Phase C-Face Rigid Base Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • 1-3/8" Keyed output shaft
  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF



Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 22.4-21.6 F.L. Amps 10.8 F.L. Amps 24.8/12.4
S. F Amps 26-25.2 S. F Amps 12.6 S. F Amps 28.8/14.4
RPM 1800 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.60 Model # C213T17WB6A
Frame 213T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 72
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number NONE CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 160.5 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081341 Mounting RIGID Rotation REV

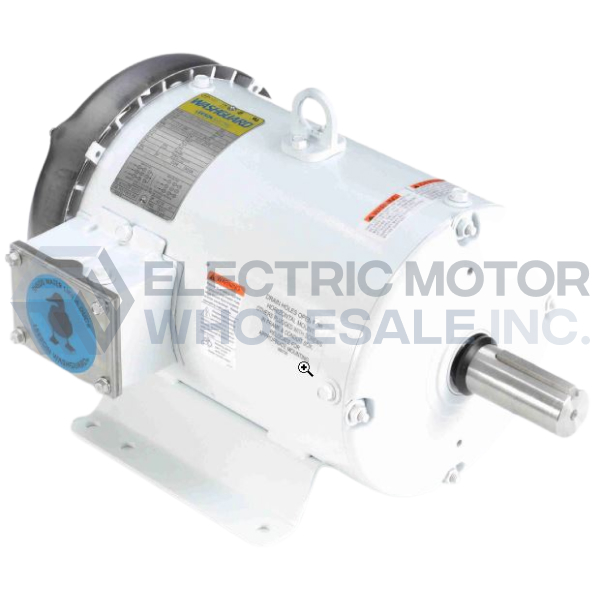

7.5HP LEESON 1765RPM 213T TEFC 3PH MOTOR 140819.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 140819.00
Stock # 140819
Price: $947.00
Compare At: $2,672.00
