2HP LEESON 1740RPM 182JM DP 1PH MOTOR 132073.00

Catalog Number:  132073.00
Model Number:  C182C17DK3A
Description:  2HP,1740RPM,182JM,DP,1PH,60HZ,JM PUMP
Ship Weight:  70 lbs.

APPLICATIONS: Designed for continuous duty service on close-coupled pumps using NEMA JM & JP mounting provisions. All motors have a rigid mounting base and NEMA JM & JP pump shaft.

FEATURES:

  • 7/8" shaft output diameter
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Non USA Manufactured, MX
  • Uses drip cover kit 175933.00
Volts 115 Volts 230 Volts
F.L. Amps 24.5 F.L. Amps 13-12.4 F.L. Amps
S. F Amps 27 S. F Amps 14-13.5 S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE CD
KW 1.49 Model Number C182C17DK3 A
Frame 182JM Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 72 Eff 75%   PF 74
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 70 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID C Rotation SELECTIVE CCW

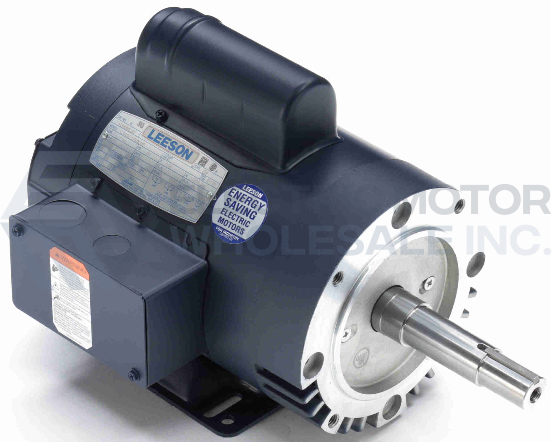

2HP LEESON 1740RPM 182JM DP 1PH MOTOR 132073.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 132073.00
Stock # 132073
Price: $407.00
Compare At: $1,070.00
