3HP LEESON 3450RPM 182JM DP 1PH MOTOR 131640.00

Catalog Number:  131640.00 - FREE Ground Shipping In USA
Model Number:  C182K34DK1 B
Description:  3HP,3450RPM,182JM,DP,1PH,60HZ
Ship Weight:  72 lbs.

LEESON JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.

FEATURES:

  • Durable rolled steel frame
  • Capacitor Start/Capacitor Run
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Non USA Manufactured, MX
  • Uses drip cover kit 175614.00
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 28 F.L. Amps 15.2-14 F.L. Amps
S. F Amps 31.6 S. F Amps 17.6-15.8 S. F Amps
RPM 3450 Hertz 60
HP 3 Duty CONTINUOUS TYPE KD
KW 2.24 Model Number C182K34DK1 B
Frame 182JM Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 89
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE No Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 72 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID C Rotation SELECTIVE CCW

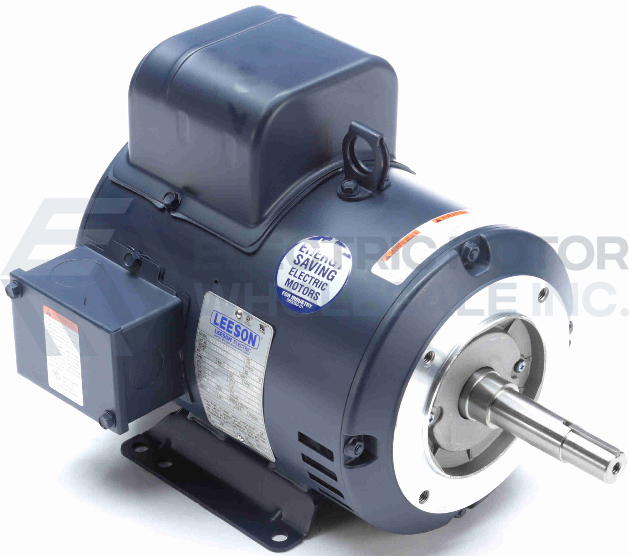

3HP LEESON 3450RPM 182JM DP 1PH MOTOR 131640.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 131640.00
Stock # 131640
Price: $421.00
Compare At: $1,237.00
