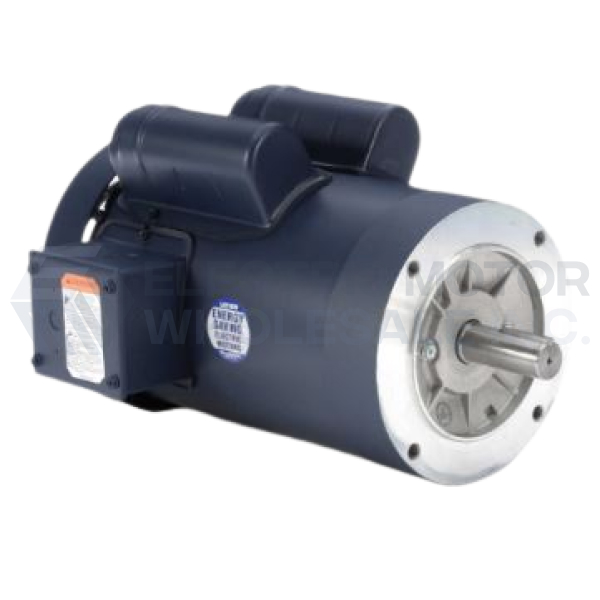

2HP LEESON 2850RPM 145TC TEFC 1PH 50HZ MOTOR 120990.00
2HP LEESON 2850RPM 145TC TEFC 1PH 50HZ MOTOR 120990.00
Part Number:
120990.00Model/Spec Number:
C145K28FC2Manufacturer:
Regal Rexnord CommercialThis part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
MSRP: $1,920.00
Regular Price
USD
$
798
00
Shipping Details
Weight:
52 lbsDimensions:
13 x 22 x 13 inchesHS Code:
8501.40.6040UPC:
691720016398Technical Details
Specifications
Application: | General Purpose |
Output HP: | 2 |
Output KW: | 1.5 |
Output RPM: | 2850 |
Frame NEMA: | 145TC |
Mount NEMA: | C-Face No Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP54 |
Voltage: | 110/220 |
Frequency (Hz): | 50 |
Documentation
Additional Information
LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use in moderately dusty or dirty environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.
Features:
- 5/8" Keyed output shaft
- High efficiency energy saving designs
- Durable rolled steel frame
- Shielded ball bearings
- Capacitor Start with centrifugal switch designed for 50Hz service
- High torque
- UL Recognized and CSA Certified
This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
