2HP LEESON 1740RPM 145T DP 1PH MOTOR 120067.00

Catalog Number:  120067.00
Model Number:  C145K17DB9J
Description:  2HP,1740RPM,145T,DP,1PH,60HZ
Ship Weight:  45 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • 7/8" shaft output diameter
  • Durable rolled steel frame
  • Capacitor Start and Run
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 21 F.L. Amps 10.5 F.L. Amps
S. F Amps 23 S. F Amps 11.5 S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE KD
KW 1.49 Model # C145K17DB9J
Frame J145T Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection NOT Therm.Prot.
Eff 100% 80 Eff 75%   PF 79
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 45 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

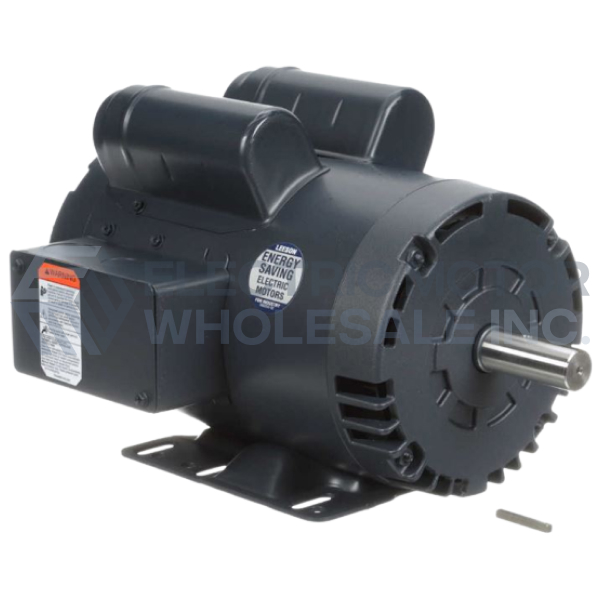

2HP LEESON 1740RPM 145T DP 1PH MOTOR 120067.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 120067.00
Stock # 120067
Price: $338.00
Compare At: $820.00
