1/2HP LEESON 1800RPM 56C TEFC 1PH MOTOR 117879.00

Catalog Number: 117879.00
Model Number: C6C17FC179
Description:  1/2HP,1800RPM,56C,TEFC,1PH,60HZ
Ship Weight: 70 lbs.

This LEESON Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: General Purpose, heavy duty for industrial and agriculture applications.

FEATURES:

  • Steel frame
  • C-Face no base
  • 5/8" shaft output diameter
  • Manual overload protected
  • Double sealed ball bearings
  • Weather resistant reset button protection
  • Capacitor start provides high starting torque
  • Non USA Manufactured, MX
Volts 115 Volts 208-230 Volts
F.L. Amps 6.6 F.L. Amps 3.1-3.3 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE CF
KW 0.25 Model # C6C17FC178
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code N
Insul Class B Protection MANUAL Therm.Prot. MED4772
Eff 100% 55 Eff 75%   PF 60
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt.   Enclosure TEFC Lubrication STANDARD
Nameplate A-92005-23 Mounting ROUND Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-102005-52-LE

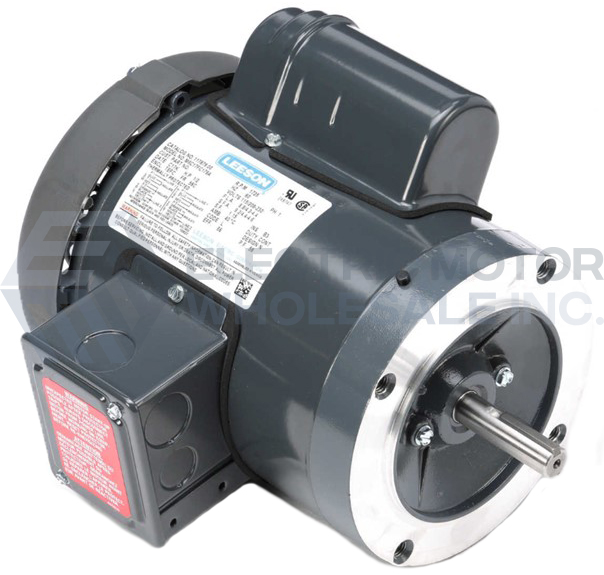

1/2HP LEESON 1800RPM 56C TEFC 1PH MOTOR 117879.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 117879.00
Stock # 117879
Price: $241.00
Compare At: $573.00
