1/3HP LEESON 1725RPM 56 1PH ECO-AG MOTOR 117689.00

Catalog Number: 117689.00 Made in USA
Model Number: M6K17FB56
Description:  1/3HP,1725RPM,56,TEFC,1PH,60HZ,PREMIUM
Ship Weight:  25 lbs.

APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.

FEATURES:

  • Made in USA
  • Premium efficient
  • Steel frame construction
  • 5/8" shaft output diameter
  • Capacitor start/capacitor run design for reduced amperage
  • Up-to 22% higher efficiency than standard Ag Motors
  • Sealed bearings
  • Shaft flinger
  • High starting torque
  • Manual overload protected
  • Condensation drains
  • 3 year warranty
  • Footnotes: S,US,53
Volts 115 Volts 208-230 Volts
F.L. Amps 3.4 F.L. Amps 1.7 F.L. Amps
S. F Amps 3.6 S. F Amps 1.8 S. F Amps
RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE KF
KW 0.25 Model # M6K17FB56A
Frame 56 Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code J
Insul Class F Protection MANUAL Therm.Prot. CED3769
Eff 100% 76 Eff 75%   PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 25 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
Assembly   Shaft Dia. 5/8 IN Ext. Diag. 005053.02

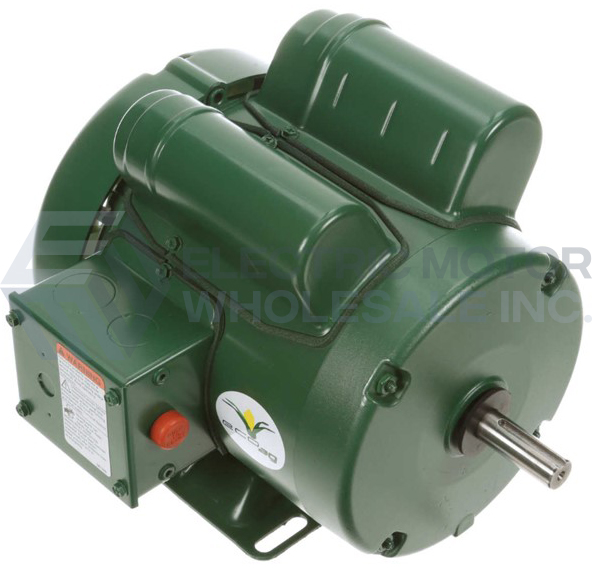

1/3HP LEESON 1725RPM 56 1PH ECO-AG MOTOR 117689.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 117689.00
Stock # 117689
Price: $158.00
Compare At: $556.00
