1.5HP LEESON 1725RPM 56HC TEFC 1PH MOTOR 116703

LEESON Catalog Number:  116703.00
Description:  1.5HP,1725RPM,56HC,TEFC,1PH,60HZ
Ship Weight:  39 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable rolled steel frame
  • Pressure Washer Duty
  • Manual overloa protection
  • High-quality ball bearings
  • Capacitor start/Capacitor run
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps 19 S. F Amps 9.8-9.5 S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE KF
KW 1.12 Model Number M6K17FK50 C
Frame 56HC Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection MANUAL Therm.Prot. CED2705
Eff 100% 79 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 39 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID C Rotation SELECTIVE CCW

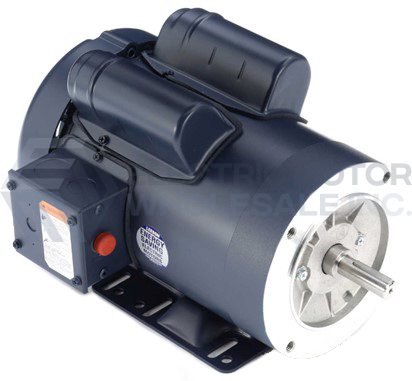

1.5HP LEESON 1725RPM 56HC TEFC 1PH MOTOR 116703
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 116703.00
Stock # 116703
Price: $355.00
Compare At: $825.00
