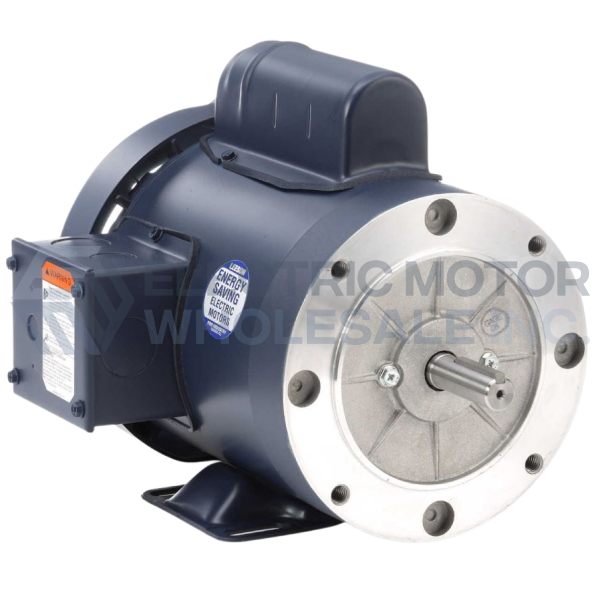

1HP LEESON 3450RPM 56C TEFC 1PH MOTOR 115877.00

Catalog Number:	115877.00 Made in USA
Model Number:	M6C34FK78D
Description:	1HP,3450RPM,56C,TEFC,1PH,60HZ
Ship Weight:	30 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

Made in USA
Durable rolled steel frame
5/8" shaft output diameter
Manual overload protection
High-quality ball bearings
Capacitor start
Easy-to-read nameplate
UL Recognized Component Listing and CSA approval
1 year warranty

Volts	115	Volts	208-230	Volts
F.L. Amps	12	F.L. Amps	6.2-6	F.L. Amps
S. F Amps	13.6	S. F Amps	7-6.8	S. F Amps
RPM	3600	Hertz	60
HP	1	Duty	CONTINUOUS	TYPE	CF
KW	0.75	Model Number	M6C34FK78 D
Frame	56C	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	N	Code	J
Insul Class	B	Protection	MANUAL	Therm.Prot.	CEJ53CA
Eff 100%	70	Eff 75%		PF	76
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6203
CC Number	EXEMPT	CE	No	Bearing PE	6203
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	34 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	993500	Mounting	RIGID C	Rotation	SELECTIVE CCW
