3/4HP LEESON 1140RPM 56 TEFC 3PH BRAKE MOTOR 114148.00

3/4HP LEESON 1140RPM 56 TEFC 3PH BRAKE MOTOR 114148.00

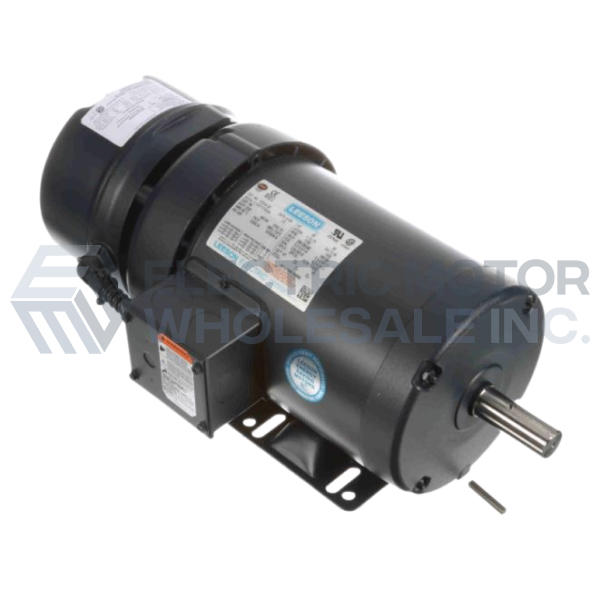

Picture is for reference only.

Part Number:

114148.00

Model/Spec Number:

C6T11FB15

Manufacturer:

Leeson Obsolete
114148.00 LEESON 3/4HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to request an agent review potential options.

Weight:

48 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501.51.4000

UPC:

691720013229

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

3/4

Output KW:

0.55

Output RPM:

1140

Frame Size NEMA:

56

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Product Information Packet
