1/2HP LEESON 1725RPM 56H DP 1PH MOTOR 111953.00

Catalog Number:  111953.00 Made in USA
Model Number:  C6S46DR1F
Description:  1/2-1/4HP,1725/1140RPM,56H,DP,1PH,60/60HZ
Ship Weight:  36 lbs.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, are suited for belted or fan on shaft applications. Self ventilated and may be mounted within or outside of the driven fan's air stream.

FEATURES:

  • Made in USA
  • Steel frame
  • 5/8" shaft output diameter
  • Belted or fan-on-shaft applications
  • Can be mounted within or outside the fan’s airstream
  • Resilient mounted for quiet operation
  • 3/4 HP and larger single phase are capacitor start motors; smaller single phase are split phase start.
  • Ball bearings
Volts 115 Volts   Volts 115
F.L. Amps 7.8 F.L. Amps   F.L. Amps 4.6
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60/60
HP 0.5 Duty CONTINUOUS TYPE SD
KW 0.37 Model # C6S46DR1F
Frame F56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code N
Insul Class B Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 36 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RESIL Rotation SELECTIVE CCW

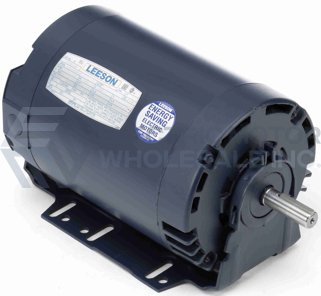

1/2HP LEESON 1725RPM 56H DP 1PH MOTOR 111953.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 111953.00
Stock # 111953
Price: $298.00
Compare At: $752.00
