3/4HP LEESON 1625RPM 56HZ TEAO 1PH MOTOR 111324.00

3/4HP LEESON 1625RPM 56HZ TEAO 1PH MOTOR 111324.00

LIGTH GRAY AQUA EPOXY.jpg

Part Number:

111324.00

Model/Spec Number:

A6P17NR4G

Manufacturer:

Leeson Obsolete

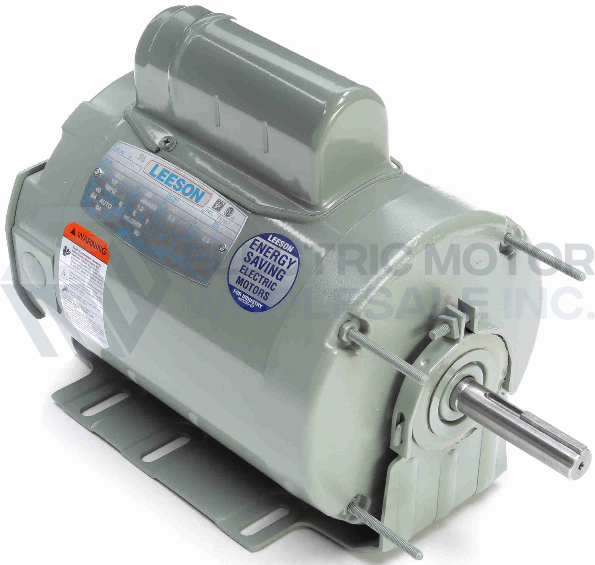

111324.00 LEESON 3/4HP Single Phase Resilient Base PSC Variable Torque Fan Motor is designed for dependable, energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than  other types of single phase motors. This design is also more energy efficient and less expensive to operate.

Item Discontinued

Click below to request an agent review potential options.

Weight:

39 lbs

Dimensions:

11 x 17 x 13 inches

HS Code:

8501.40.4040

UPC:

691720009871

Technical Details

Application:

HVAC

Output HP:

3/4

Output KW:

0.56

Output RPM:

1625

Frame NEMA:

56HZ

Mount NEMA:

Resilient Base

Enclosure NEMA:

TEAO

Enclosure IEC:

IP43

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet
