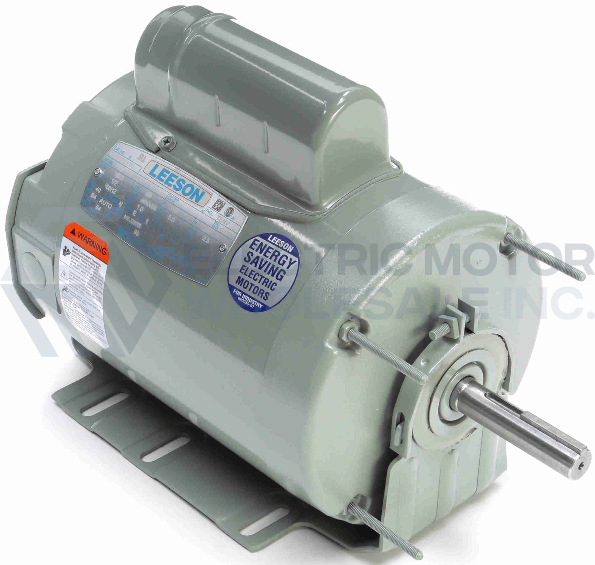

1HP LEESON 1625RPM 56H TEAO 1PH MOTOR 111267.00

1HP LEESON 1625RPM 56H TEAO 1PH MOTOR 111267.00

LIGTH GRAY AQUA EPOXY.jpg
Picture is for reference only.

Part Number:

111267.00

Model/Spec Number:

A6P17NR2G

Manufacturer:

Leeson Obsolete
111267.00 LEESON 1HP Single Phase Resilient Base PSC Variable Torque Fan Motor is designed for dependable, energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than other types of single phase motors. This design is also more energy efficient and less expensive to operate.

Item Discontinued

Click below to request an agent review potential options.

Weight:

41 lbs

Dimensions:

12 x 14 x 14 inches

HS Code:

8501.40.6040

UPC:

691720009765

Technical Details

Application:

HVAC

Output HP:

1

Output KW:

0.75

Output RPM:

1625

Frame NEMA:

56H

Mount NEMA:

Resilient Base

Enclosure NEMA:

TEAO

Enclosure IEC:

IP43

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet
