1HP LEESON 3450RPM 56C TEFC 1PH MOTOR 110416.00

 Catalog Number:  110416.00 - FREE Ground Shipping in USA
 Model Number:  C6C34FC10 H
Description:  1HP,3450RPM,56C,TEFC,1PH,60HZ
Ship Weight:  30 lbs.

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • Double-shielded ball bearings
  • Capacitor start
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 12 F.L. Amps 6.2-6 F.L. Amps
S. F Amps 13.6 S. F Amps 7-6.8 S. F Amps
RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE CF
KW 0.75 Model Number C6C34FC10H
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 76
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 30 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting ROUND Rotation SELECTIVE CCW

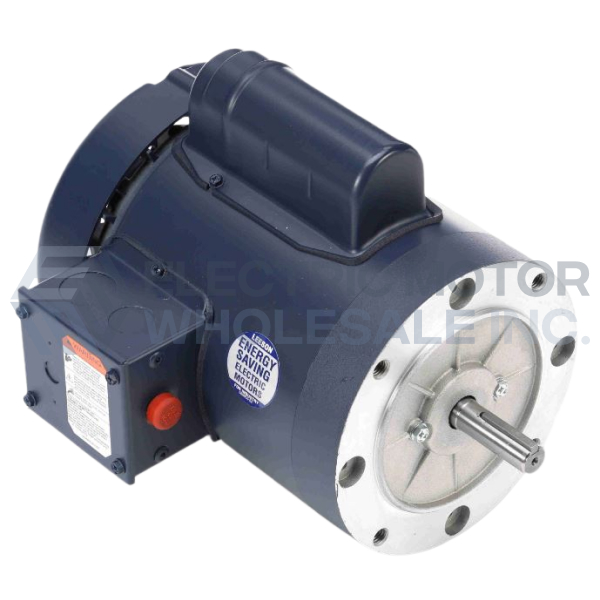

1HP LEESON 3450RPM 56C TEFC 1PH MOTOR 110416.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110416.00
Stock # 110416
Price: $258.00
Compare At: $650.00
