3/4HP LEESON 1140RPM 56H TEFC 1PH MOTOR 110400.00

Catalog Number:  110400.00 Made in USA
Model Number:  C6K11FB1G
Description:  3/4HP,1140RPM,56H,TEFC,1PH,60HZ
Ship Weight:  46 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor start/capcitor run design for reduced amperage
  • Easy-to-read nameplate
  • Combination 56H base has mounting holes for NEMA 56 and NEMA 143-5T and a standard NEMA 56 shaft of 5/8”
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 10.6 F.L. Amps 5.4-5.3 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1200 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE KF
KW .56 Model Number C6K11FB1G
Frame 56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 66
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 46 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

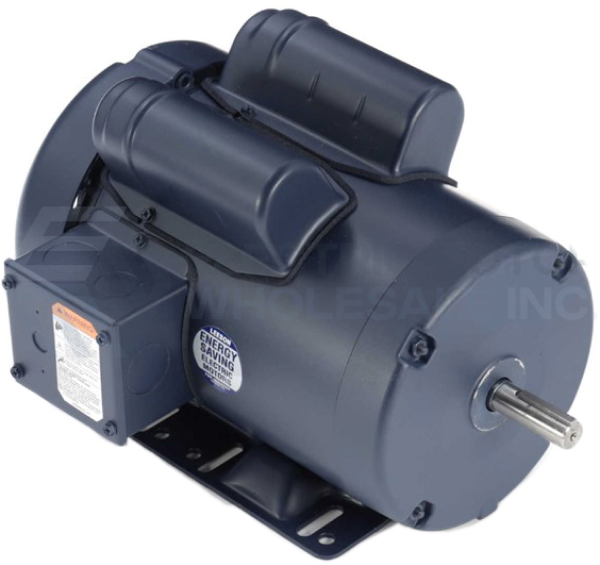

3/4HP LEESON 1140RPM 56H TEFC 1PH MOTOR 110400.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110400.00
Stock # 110400
Price: $420.00
Compare At: $1,015.00
