3/4HP LEESON 1425RPM 56 IP22 1PH MOTOR 110396.00

Catalog Number:  110396.00 Made in USA
Model Number:  C6C14DB7H
Description:  3/4HP,1425RPM,56,IP22,1PH,50HZ
Ship Weight:  33 lbs.

DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

General Specifications: 50 Hz single phase designs produce full rated HP on 50Hz power supply. Designed for general purpose applications.

Electrical Features: High efficiency energy saving designs. Centrifugal switch specifically designed for 50 Hz service. Conduit box with leads. Torque at rated HP on 50 Hz power supply is 20% greater than the running torque of a 60 Hz motor. All 180 and 210 frame Rolled Steel motors have Class F Insulation.

Features Include:

  • Made in USA
  • 5/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 110 Volts 220 Volts
F.L. Amps 11.8 F.L. Amps 5.9 F.L. Amps
S. F Amps 12.8 S. F Amps 6.4 S. F Amps
RPM 1500 Hertz 50
HP 3/4 Duty CONTINUOUS TYPE CD
KW 0.55 Model Number C6C14DB7H
Frame E56 Serv. Factor 1.25 Phase 1
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE
CC Number   CE Yes Bearing PE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 33 LB Enclosure IP22 Lubrication STANDARD
Nameplate 080671 Mounting RIGID Rotation SELECTIVE CCW

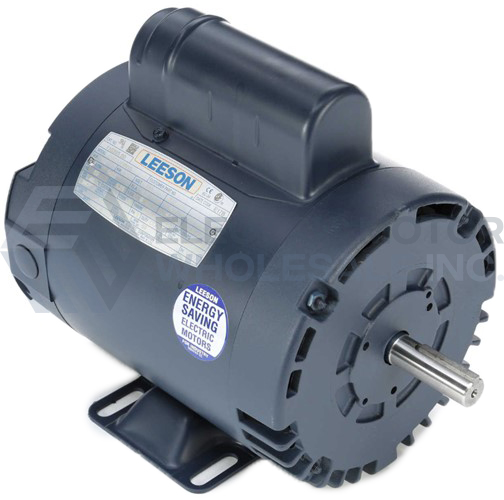

3/4HP LEESON 1425RPM 56 IP22 1PH MOTOR 110396.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110396.00
Stock # 110396
Price: $345.00
Compare At: $869.00
