2HP LEESON 3600RPM 56C ODP 115/230V 1PH ECOSAVER MOTOR E110390.00

Catalog Number:  E110390.00 - FREE Ground Shipping in USA
Model Number:  C6K34DC27A
Description:  2HP,3450RPM,56C,DP,115/230V,1PH,60HZ,ECOSAVER
Ship Weight:  38 lbs.

This Leeson motor is subject to availability. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON Single Phase ECOSAVER Motors satisfies the mandated efficiencies of NEMA Premium and carries a three year warranty. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.


  • Made in USA
  • Durable rolled steel construction
  • Continuous duty
  • 5/8" Keyed output shaft
  • Double shielded ball bearings
  • Capacitor Start and Run for reduced amperage
  • UL Recognized Component Listing and CSA approval
Volts 115 Volts 230 Volts
F.L. Amps 16 F.L. Amps 8 F.L. Amps
S. F Amps 18.8 S. F Amps 9.4 S. F Amps
RPM 3600 Hertz 60
KW 1.49 Model # C6K34DC27A
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 82.9 Eff 75%   PF 99.3
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 38 LB Enclosure DP Lubrication POLYREX EM
Nameplate 10000417-001-001 Mounting ROUND Rotation SELECTIVE CCW
Assembly NONE Shaft Dia. 5/8 IN Ext. Diag. 005054.01
Cust Part No   Outline 607-0201-700 Ext. Diag2
Packaging B Outline Dash No   Winding K632186

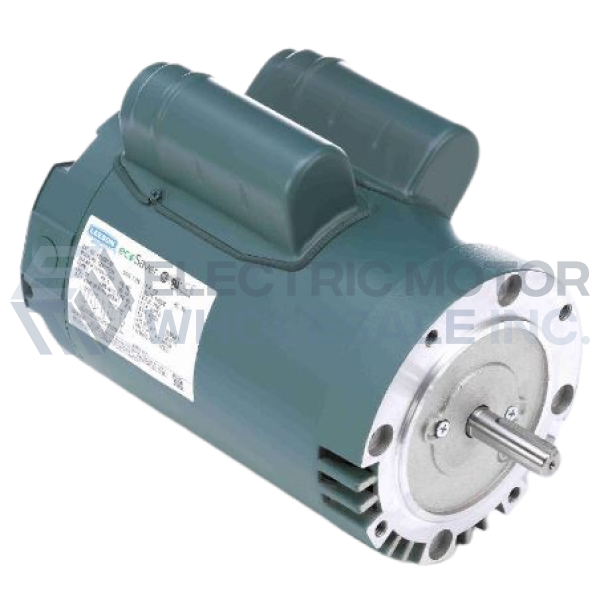

2HP LEESON 3600RPM 56C ODP 115/230V 1PH ECOSAVER MOTOR E110390.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: E110390.00
Stock # E110390
