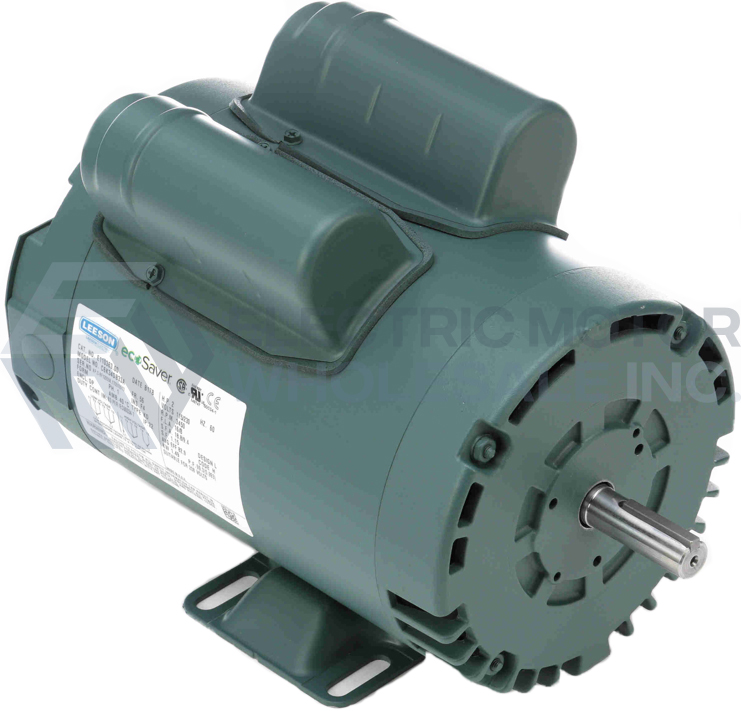

1HP LEESON 1725RPM 56 DP 1PH WATTSAVER MOTOR E110004.00

LEESON 110004.00 has been superseded by E110004.00

Catalog Number:	E110004.00 Made in USA
Model Number:	C6K17DB52A
Description:	1HP,1725RPM,56,DP,1PH,60HZ
Ship Weight:	35 lbs.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

Made in USA
5/8" shaft output diameter
Durable rolled steel frame
High-quality ball bearings
Easy-to-read nameplate
UL Recognized Component Listing and CSA approval
NEMA Premium efficiency with 3 year warranty

Volts	115	Volts	230	Volts
F.L. Amps	8.4	F.L. Amps	4.2	F.L. Amps
S. F Amps	10.4	S. F Amps	5.2	S. F Amps
RPM	1800	Hertz	60
HP	1	Duty	CONTINUOUS	TYPE	KD
KW	.75	Model #	C6K17DB52A
Frame	56	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	L	Code	J
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	82.6	Eff 75%		PF	93
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6203
CC Number	EXEMPT	CE	Yes	Bearing PE	6203
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.		Enclosure	DP	Lubrication	STANDARD
Nameplate	10000417-001-001	Mounting	RIGID	Rotation	SELECTIVE CCW
Assembly		Shaft Dia.	5/8 IN	Ext. Diag.	005054.01
Cust Part No		Outline	-	Ext. Diag2
